Designed by Machinists, for Machinists!

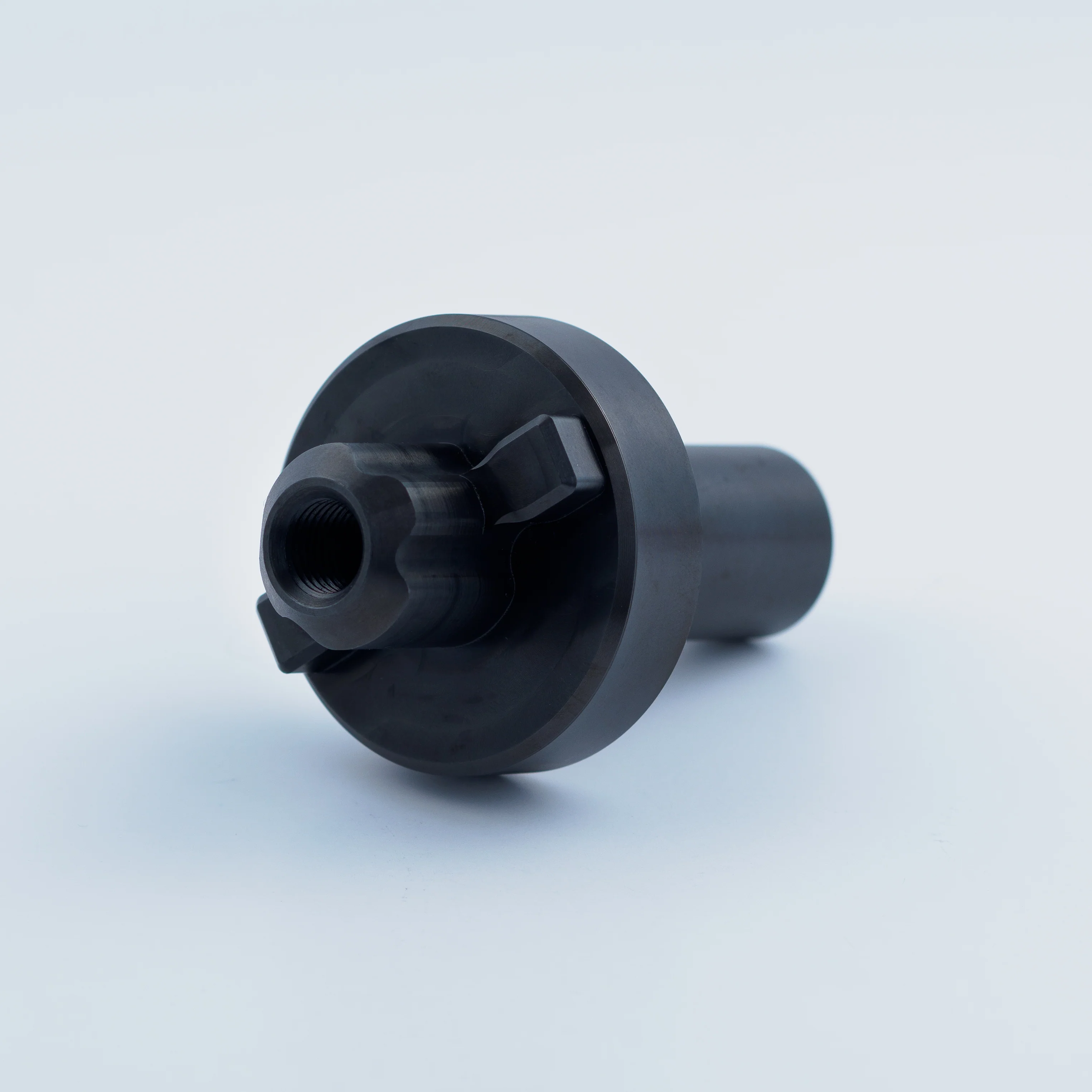

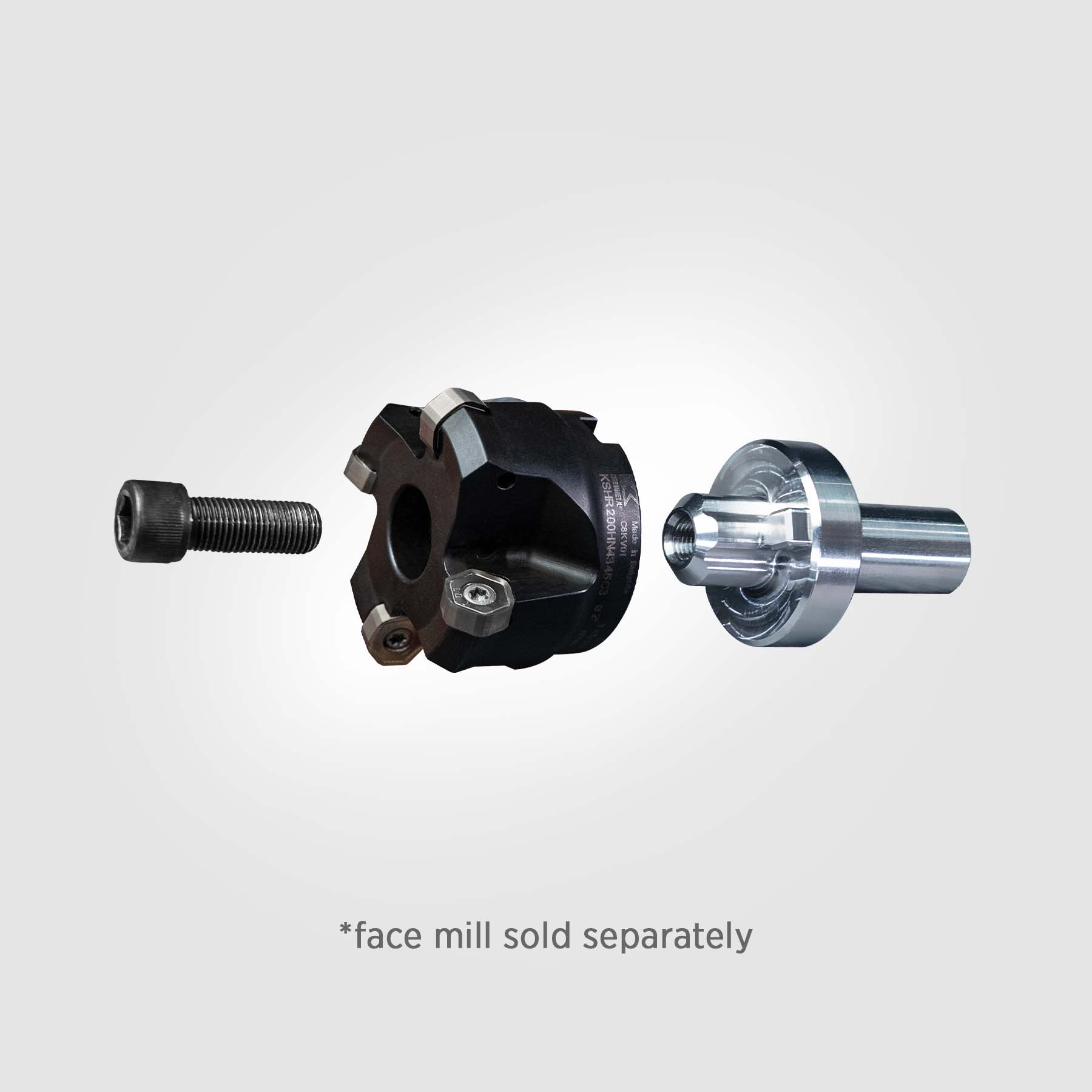

Custom designed and machined arbor adapter by TEAM TITAN. Fits most 2" face mills (including: Dodeka, 7792, and 5720 tooling). Manufactured with lower HP machines in mind.

Technical Data

Material	1045 Steel (Black Oxide)
Adapter Type	Arbor
System Size	3/4" Shank
Through Coolant	No

Specification	Inch	Metric
[D1] Shank Diameter	0.750"	19.050mm
[D2] Body Diameter	1.700"	43.180mm
[D3] Arbor Diameter	.750"	19.020mm
[L1] Shank Length	1.150"	29.100mm
[L2] Flange Length	.500"	12.700mm
[L3] Arbor Length	.740"	18.800mm
[L4] Key Width	.318"	8.080mm
[L5] Key Height	.220"	5.460mm
[T1] Thread Size	3/8-24" ↧ .750"	M10 x 1.5

Designed and Made in the USA by TITANS of CNC.
