KENGold KCP25C Inserts CNMG321 Medium Versatile CR 0.016" (5-PACK) 7036143

Product image 1
1 / 2

KENGold KCP25C Inserts CNMG321 Medium Versatile CR 0.016" (5-PACK) 7036143

The GOLD Standard in Turning Inserts!
  • For applications in steels and cast iron.
  • Roughing geometry with stronger edge line for demanding applications.
  • Beyondā„¢ Driveā„¢ grades included.
Materials
  • Primary: Steel
  • Secondary: Cast Iron
Insert Data
  • Quantity: 5
  • Grade: KCP25C
  • Material Type: FERT
  • Catalog: CNMG321
  • Chip Breaker: MV
  • Tool Family: Kenlocā„¢

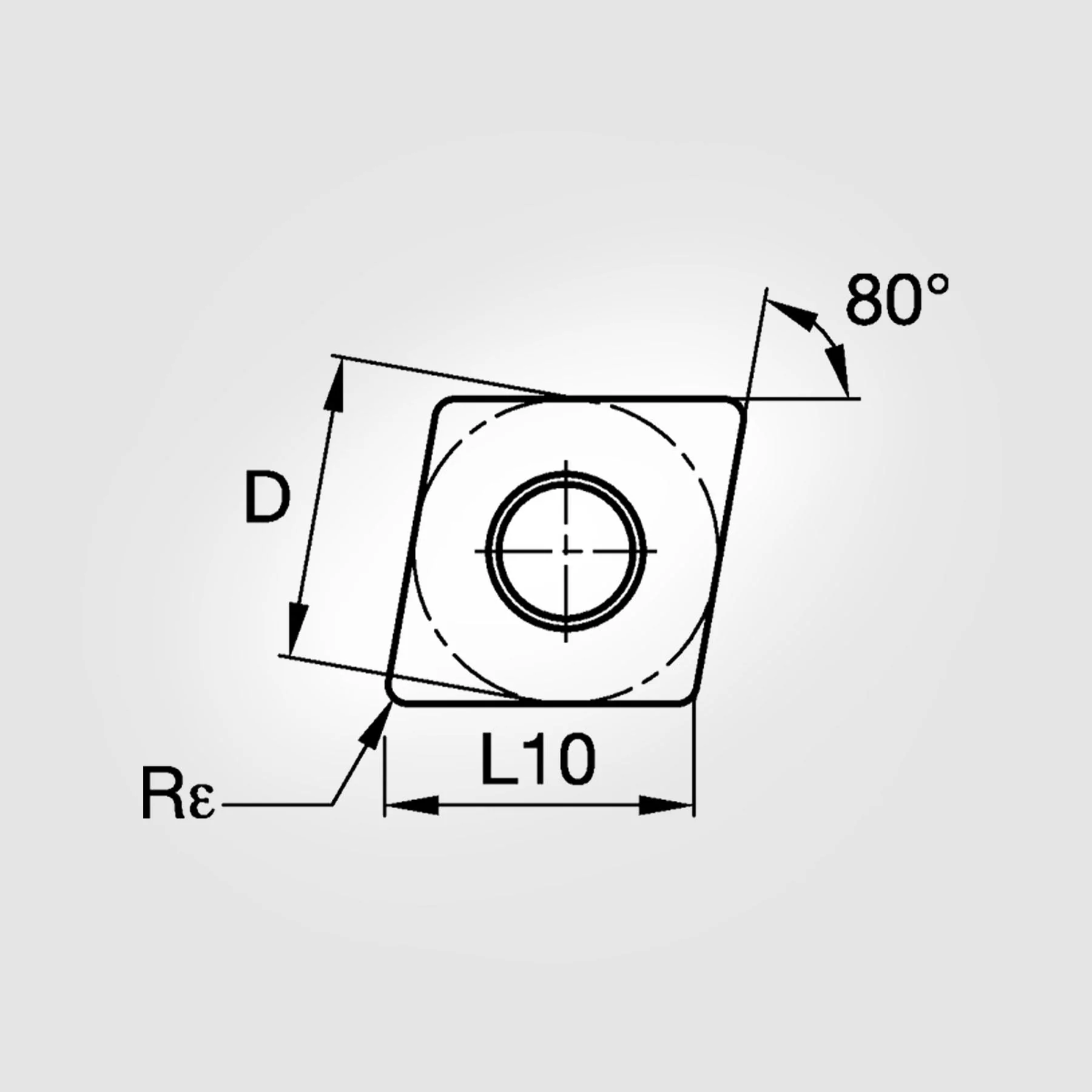

  • Insert Shape: Diamond/Rhombic 80
  • [D] Insert Size (Fraction): 3/8"
  • [D] Insert Size (Inch): 0.375"
  • [D] Insert Size (Metric): 9.525mm
  • [D1] Insert Hole Size (Inch): 0.150"
  • [D1] Insert Hole Size (Metric): 3.810mm
  • [L10] Cutting Edge Length (Inch): 0.381"
  • [L10] Cutting Edge Length (Metric): 9.672mm
  • [S] Insert Thickness (Fraction): 1/8"
  • [S] Insert Thickness (Inch): 0.125"
  • [S] Insert Thickness (Metric): 3.180mm
  • [RĪµ] Corner Radius (Fraction): 1/64"
  • [RĪµ] Corner Radius (Inch): 0.016"
  • [RĪµ] Corner Radius (Metric): 0.400mm

Country of Origin is subject to change.

Safety data sheets upon request.

$70.70
KENGold KCP25C Inserts CNMG321 Medium Versatile CR 0.016" (5-PACK) 7036143ā€”
$70.70

Product Information

Shipping & Returns

Description

The GOLD Standard in Turning Inserts!
  • For applications in steels and cast iron.
  • Roughing geometry with stronger edge line for demanding applications.
  • Beyondā„¢ Driveā„¢ grades included.
Materials
  • Primary: Steel
  • Secondary: Cast Iron
Insert Data
  • Quantity: 5
  • Grade: KCP25C
  • Material Type: FERT
  • Catalog: CNMG321
  • Chip Breaker: MV
  • Tool Family: Kenlocā„¢
  • Insert Shape: Diamond/Rhombic 80
  • [D] Insert Size (Fraction): 3/8"
  • [D] Insert Size (Inch): 0.375"
  • [D] Insert Size (Metric): 9.525mm
  • [D1] Insert Hole Size (Inch): 0.150"
  • [D1] Insert Hole Size (Metric): 3.810mm
  • [L10] Cutting Edge Length (Inch): 0.381"
  • [L10] Cutting Edge Length (Metric): 9.672mm
  • [S] Insert Thickness (Fraction): 1/8"
  • [S] Insert Thickness (Inch): 0.125"
  • [S] Insert Thickness (Metric): 3.180mm
  • [RĪµ] Corner Radius (Fraction): 1/64"
  • [RĪµ] Corner Radius (Inch): 0.016"
  • [RĪµ] Corner Radius (Metric): 0.400mm

Country of Origin is subject to change.

Safety data sheets upon request.
