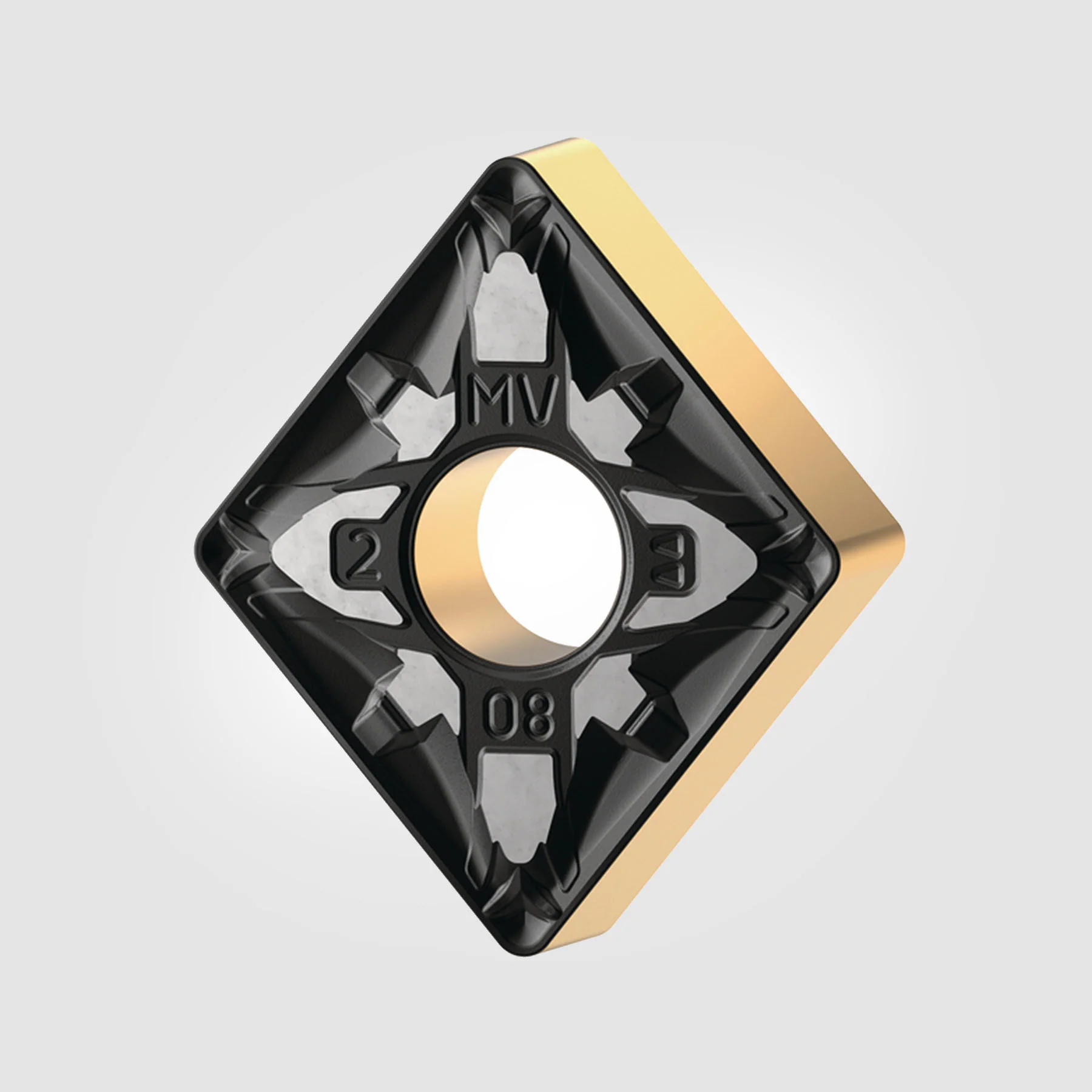

KENGold KCP25C Inserts CNMG432 Medium Versatile CR 0.0312" (5-PACK) 7036146
The GOLD Standard in Turning Inserts!
- For applications in steels and cast iron.
- Roughing geometry with stronger edge line for demanding applications.
- Beyondā¢ Driveā¢ grades included.
Materials
- Primary: Steel
- Secondary: Cast Iron
| Insert Data | |
|---|---|
| Quantity | 5 |
| Grade | KCP25C |
| Material Type | FERT |
| Catalog | CNMG432 |
| Chip Breaker | MV |
| Tool Family | Kenlocā¢ |

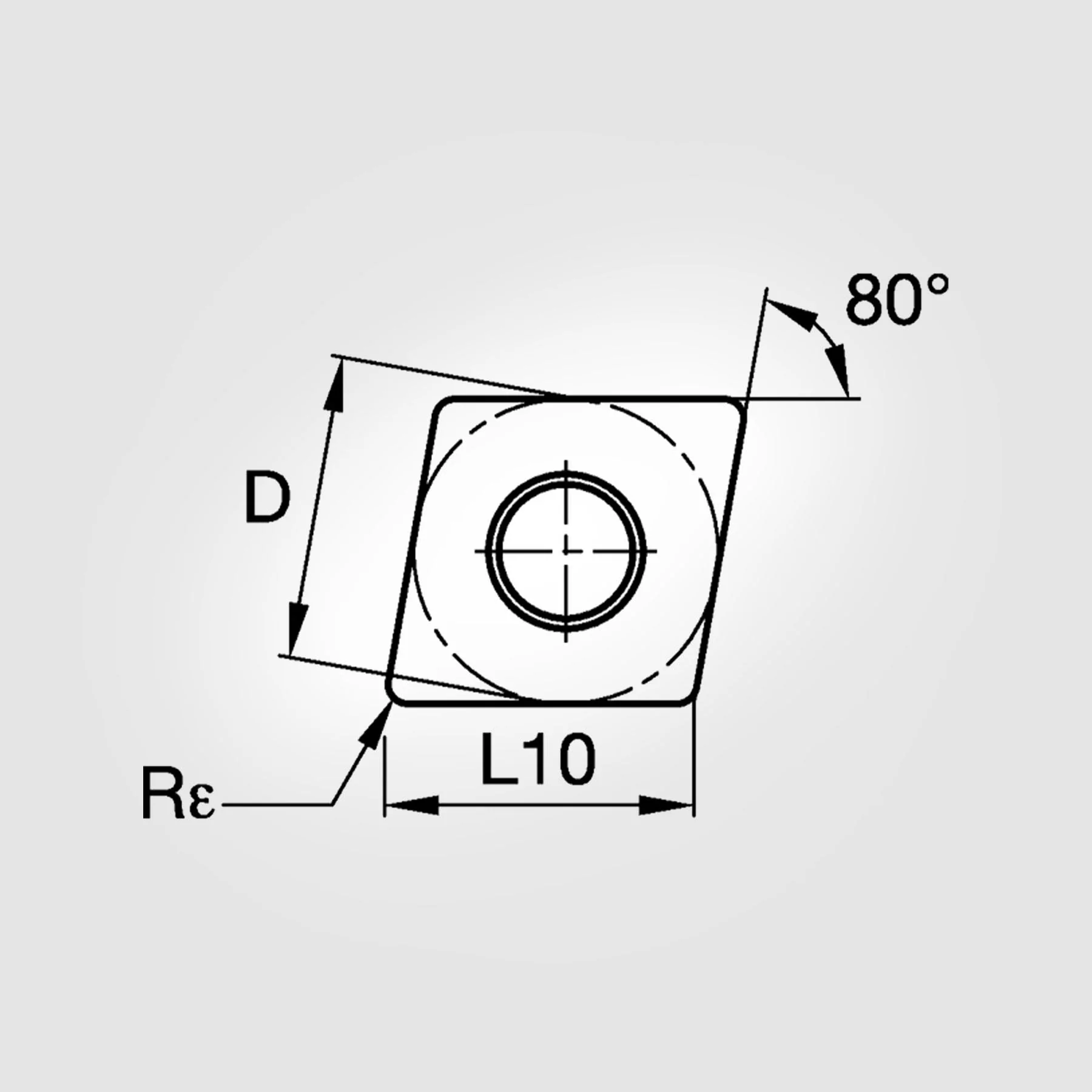

| Insert Shape | Diamond/Rhombic 80 |
| [D] Insert Size (Fraction) | 1/2" |
| [D] Insert Size (Inch) | 0.500" |
| [D] Insert Size (Metric) | 12.700mm |
| [D1] Insert Hole Size (Inch) | 0.203" |
| [D1] Insert Hole Size (Metric) | 5.160mm |
| [L10] Cutting Edge Length (Inch) | 0.508" |
| [L10] Cutting Edge Length (Metric) | 12.896mm |
| [S] Insert Thickness (Fraction) | 3/16" |
| [S] Insert Thickness (Inch) | 0.188" |
| [S] Insert Thickness (Metric) | 4.763mm |
| [RĪµ] Corner Radius (Fraction) | 1/32" |
| [RĪµ] Corner Radius (Inch) | 0.031" |
| [RĪµ] Corner Radius (Metric) | 0.800mm |
Country of Origin is subject to change.
Safety data sheets upon request.
