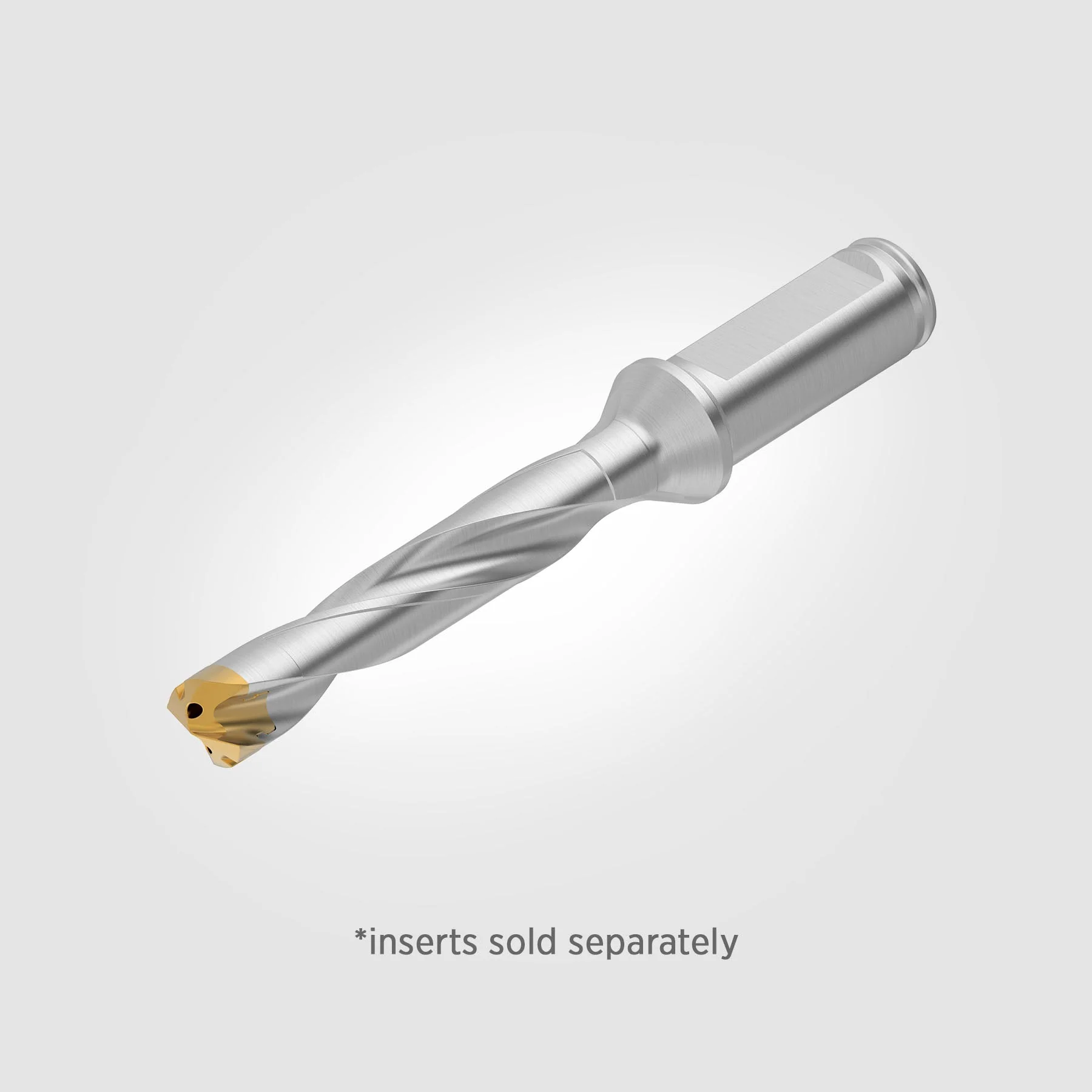

TITAN's Go-To Modular Drill!

• Straight chip flutes guarantee hassle-free chip evacuation, enhancing tool life and performance
• Coolant delivery to the drill point and to the rake face for guaranteed coolant delivery where it is needed
• Insert exchange in the machine becomes easy and saves idle time and money
• Every drill body comes with a KenTIP FS smart wrench
• For static drilling applications on lathes

Materials

• Steel, Stainless Steel, Cast Iron, High-Temp Alloys; Non-Ferrous Materials, Hardened Materials

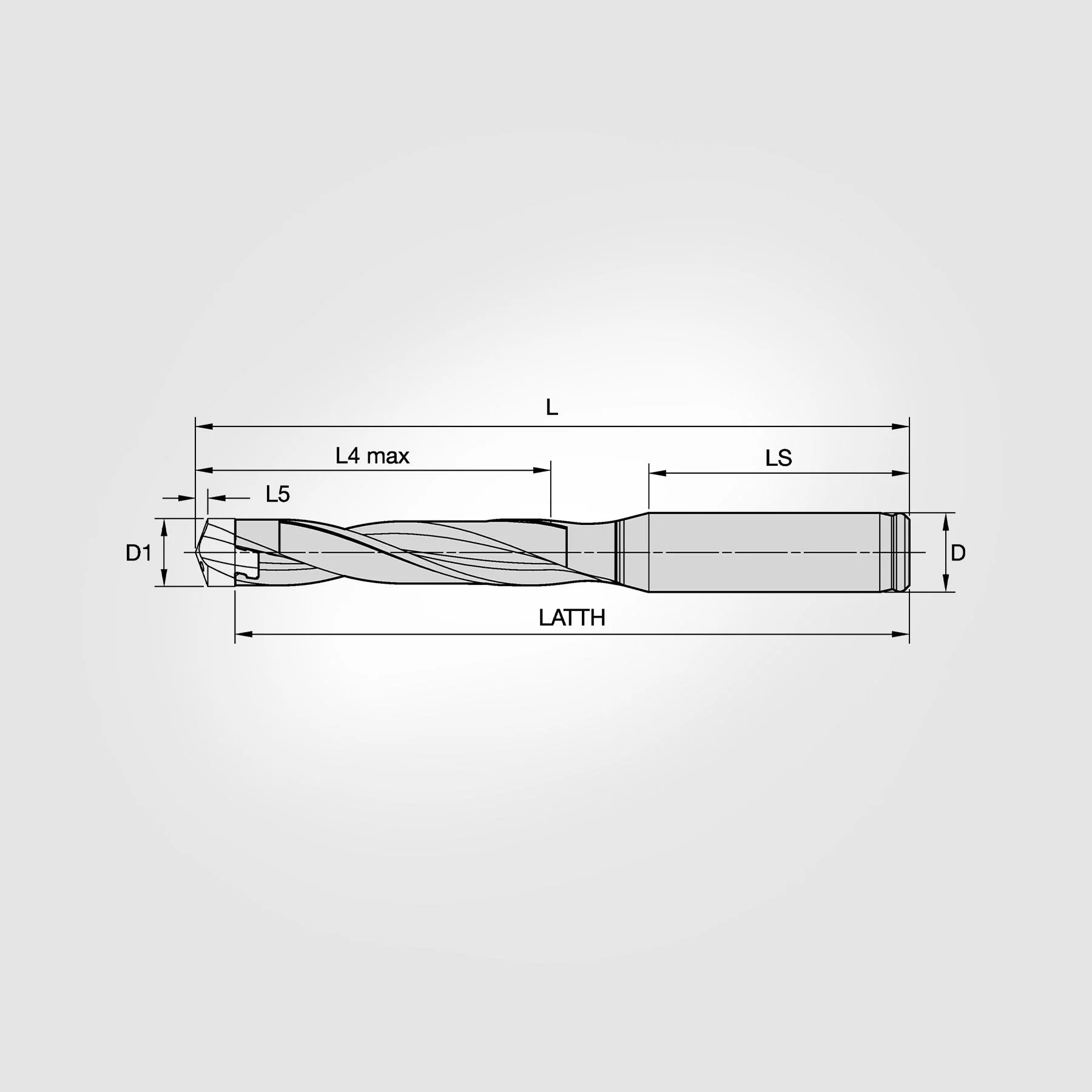

Technical Data

• Adapter Style: Straight-Cylindrical
• Insert Size: V
• Through Coolant: Yes
• [D] Shank Diameter (Metric): 19.050mm
• [D] Shank Diameter (Inch): 0.750"
• [D1] Drill Diameter Min (Metric): 17.000mm
• [D1] Drill Diameter Min (Inch): 0.669"
• [D1MAX] Drill Diameter Max (Metric): 17.999mm
• [D1MAX] Drill Diameter Max (Inch): 0.709"
• [L] Overall Length (Metric): 126.000mm
• [L] Overall Length (Inch): 4.961"
• [L4] Max Drill Depth (Metric): 54.000mm
• [L4] Max Drill Depth (Inch): 2.126"
• [LATTH] Insert Attach LG Holder (Metric): 116.100mm
• [LATTH] Insert Attach LG Holder (Inch): 4.571"
• [LS] Shank Length (Metric): 50.800mm
• [LS] Shank Length (Inch): 2.000"

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
