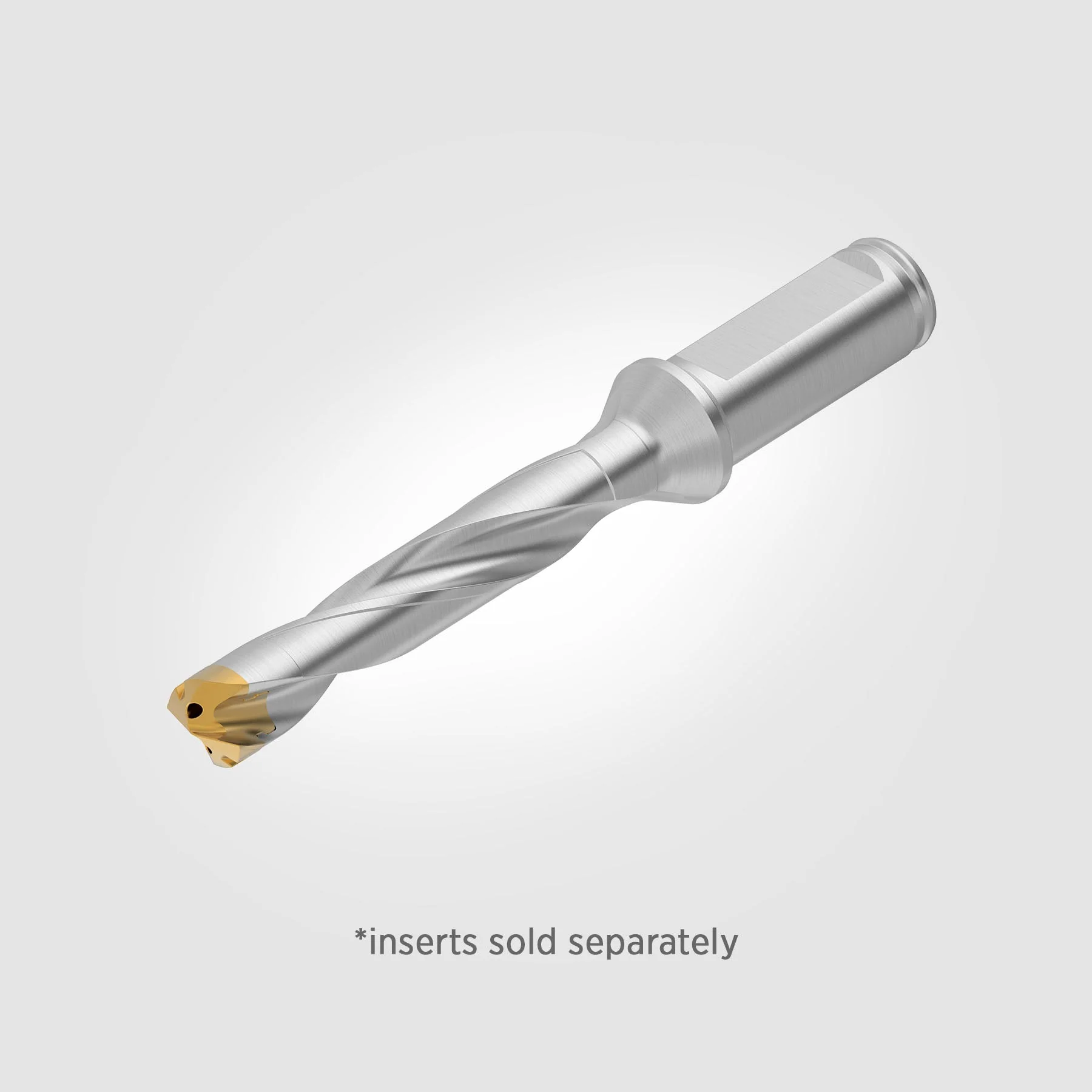

TITAN's Go-To Modular Drill!

• Straight chip flutes guarantee hassle-free chip evacuation, enhancing tool life and performance
• Coolant delivery to the drill point and to the rake face for guaranteed coolant delivery where it is needed
• Insert exchange in the machine becomes easy and saves idle time and money
• Every drill body comes with a KenTIP FS smart wrench
• For static drilling applications on lathes

Materials

• Steel, Stainless Steel, Cast Iron, High-Temp Alloys; Non-Ferrous Materials, Hardened Materials

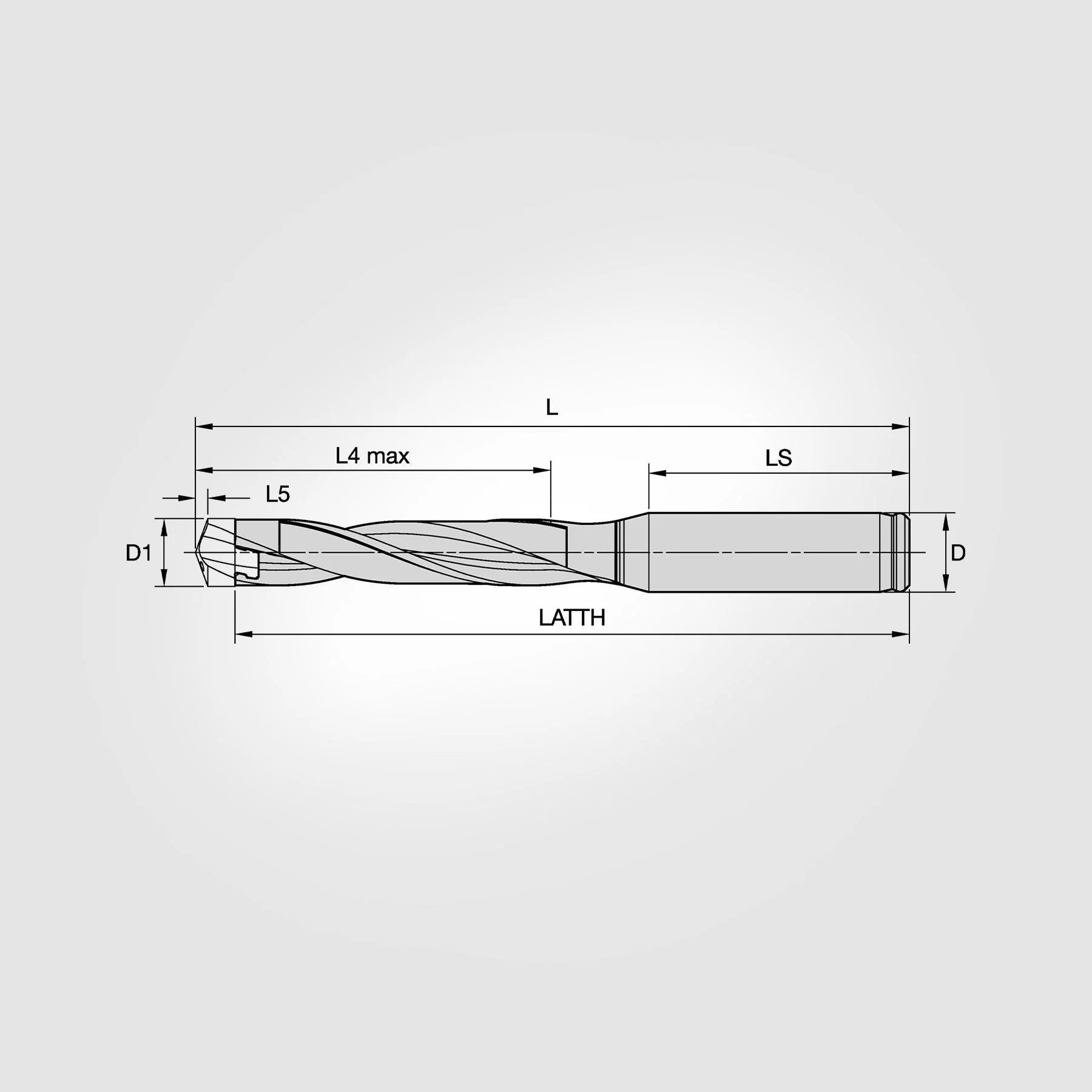

Technical Data

• Adapter Style: Cylindrical Shank 1 Flat
• Insert Size: X
• Through Coolant: Yes
• [D] Shank Diameter (Metric): 25.000mm
• [D] Shank Diameter (Inch): 0.984"
• [D1] Drill Diameter Min (Metric): 19.000mm
• [D1] Drill Diameter Min (Inch): 0.748"
• [D1MAX] Drill Diameter Max (Metric): 19.999mm
• [D1MAX] Drill Diameter Max (Inch): 0.787"
• [L] Overall Length (Metric): 246.000mm
• [L] Overall Length (Inch): 9.685"
• [L4] Max Drill Depth (Metric): 160.000mm
• [L4] Max Drill Depth (Inch): 6.299"
• [LATTH] Insert Attach LG Holder (Metric): 179.000mm
• [LATTH] Insert Attach LG Holder (Inch): 7.047"
• [LS] Shank Length (Metric): 56.000mm
• [LS] Shank Length (Inch): 2.205"

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
