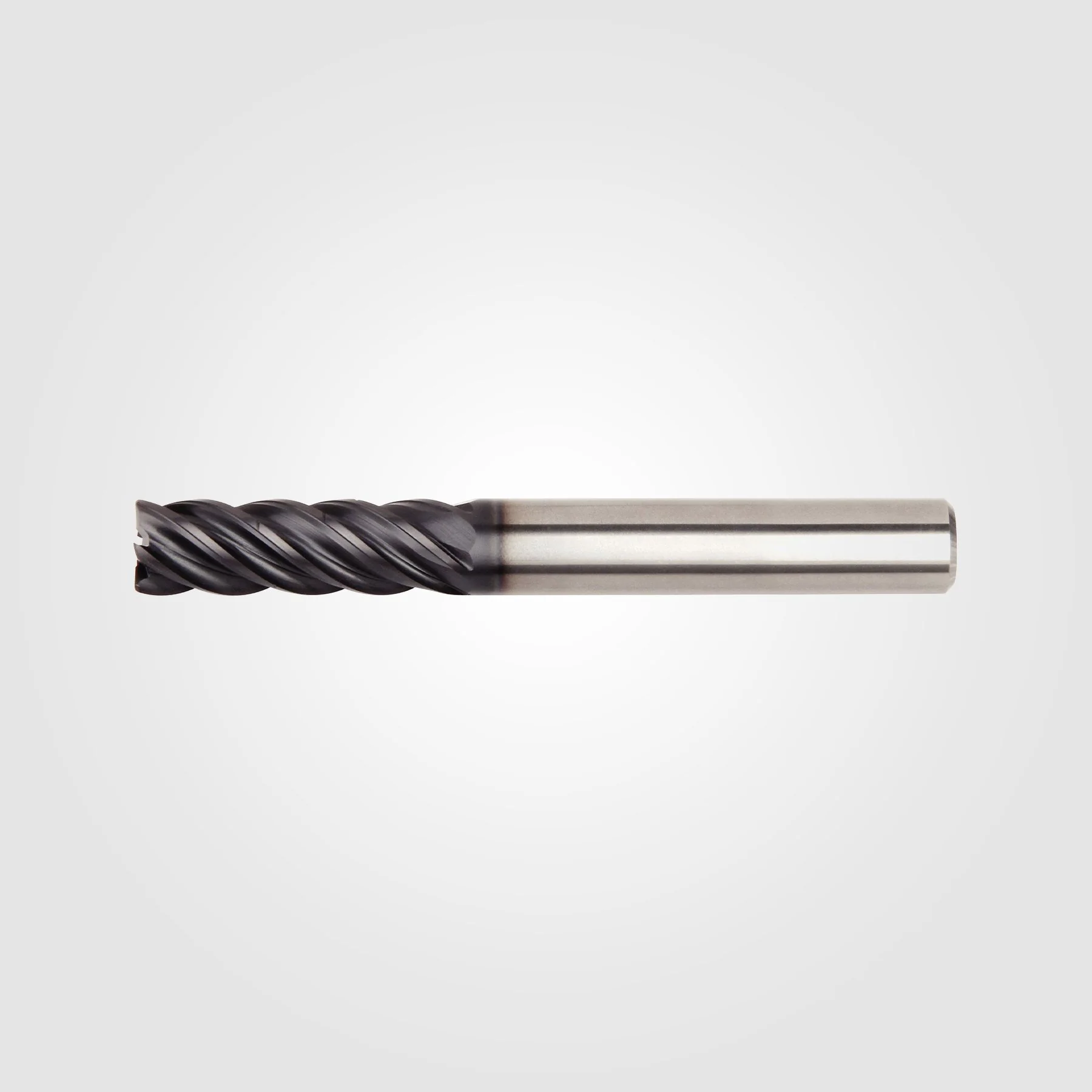

KOR-5 DS 12mm x 36mm x 100mm 5-FLUTE SOLID CARBIDE ENDMILL 6763988

Product image 1

KOR-5 DS 12mm x 36mm x 100mm 5-FLUTE SOLID CARBIDE ENDMILL 6763988

There's a reason the KOR-5™ DS is called the KING OF ROUGHING! This end mill was made for dynamic roughing in steel and stainless steel that will save you time and money. Enough said.

Cut TITAN-Sized Chips in Steel
  • Helix angles target material, minimize vibration, and optimize tool life
  • Chip deformers for near-perfect chip management and high surface quality
  • 3xD and 5xD with Plain and Weldon® shanks
  • Weldon® shank for pullout protection
Materials
  • Steel, Stainless Steel, Cast Iron, High-Temp Alloys, Hardened Materials
Technical Data
  • Grade: KC643M
  • Coating: AlTiN
  • Adapter Style: Weldon Shank
  • Number of Flutes: 5
  • Effective Cutting Diameter (Metric): 12.000mm
  • Shank Diameter (Metric): 12.000mm
  • Length of Cut (Metric): 36.000mm
  • Overall Length (Metric): 100.000mm
  • Corner Radius (Metric): 0.750mm
  • Helix Angle: 40°

Country of Origin is subject to change.

Safety data sheets upon request.

$181.77
KOR-5 DS 12mm x 36mm x 100mm 5-FLUTE SOLID CARBIDE ENDMILL 6763988—
$181.77

Product Information

Shipping & Returns

Description

There's a reason the KOR-5™ DS is called the KING OF ROUGHING! This end mill was made for dynamic roughing in steel and stainless steel that will save you time and money. Enough said.

Cut TITAN-Sized Chips in Steel
  • Helix angles target material, minimize vibration, and optimize tool life
  • Chip deformers for near-perfect chip management and high surface quality
  • 3xD and 5xD with Plain and Weldon® shanks
  • Weldon® shank for pullout protection
Materials
  • Steel, Stainless Steel, Cast Iron, High-Temp Alloys, Hardened Materials
Technical Data
  • Grade: KC643M
  • Coating: AlTiN
  • Adapter Style: Weldon Shank
  • Number of Flutes: 5
  • Effective Cutting Diameter (Metric): 12.000mm
  • Shank Diameter (Metric): 12.000mm
  • Length of Cut (Metric): 36.000mm
  • Overall Length (Metric): 100.000mm
  • Corner Radius (Metric): 0.750mm
  • Helix Angle: 40°

Country of Origin is subject to change.

Safety data sheets upon request.
