KOR-5 DS 3/4" x 2 1/4" x 5" 5-FLUTE SOLID CARBIDE ENDMILL 6769791

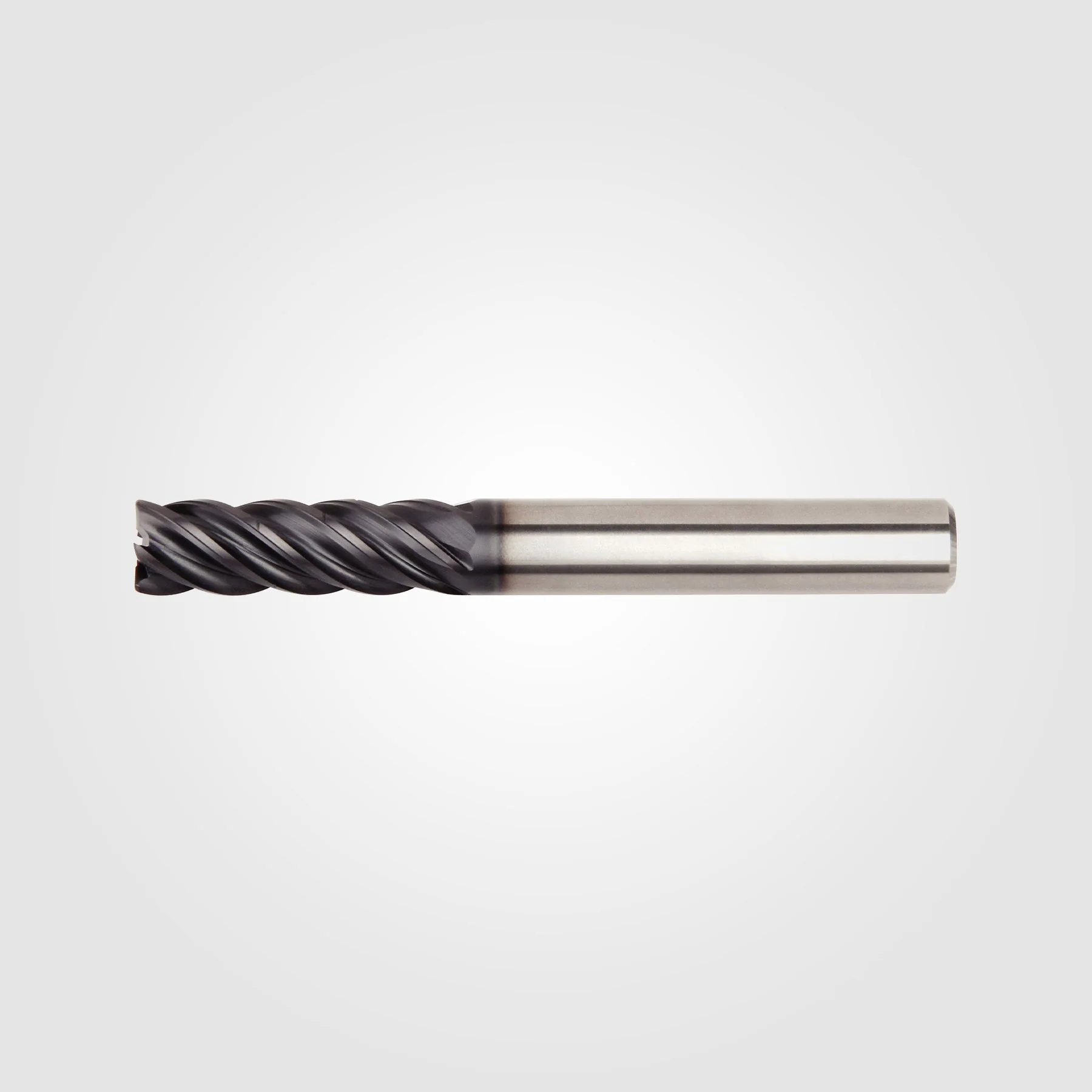

Product image 1

KOR-5 DS 3/4" x 2 1/4" x 5" 5-FLUTE SOLID CARBIDE ENDMILL 6769791

There's a reason the KOR-5™ DS is called the KING OF ROUGHING! This end mill was made for dynamic roughing in steel and stainless steel that will save you time and money. Enough said.

Cut TITAN-Sized Chips in Steel
  • Helix angles target material, minimize vibration, and optimize tool life
  • Chip deformers for near-perfect chip management and high surface quality
  • 3xD and 5xD with Plain and Weldon® shanks
  • Weldon® shank for pullout protection
Materials
  • Steel, Stainless Steel, Cast Iron, High-Temp Alloys, Hardened Materials
Technical Data
  • Grade: KC643M
  • Coating: AlTiN
  • Adapter Style: Weldon Shank
  • Number of Flutes: 5
  • Effective Cutting Diameter: 0.750"
  • Shank Diameter: 0.750"
  • Length of Cut: 2.250"
  • Overall Length: 5.000"
  • Corner Radius: 0.060"
  • Helix Angle: 40°

Country of Origin is subject to change.

Safety data sheets upon request.

$453.52
KOR-5 DS 3/4" x 2 1/4" x 5" 5-FLUTE SOLID CARBIDE ENDMILL 6769791—
$453.52

Product Information

Shipping & Returns

Description

There's a reason the KOR-5™ DS is called the KING OF ROUGHING! This end mill was made for dynamic roughing in steel and stainless steel that will save you time and money. Enough said.

Cut TITAN-Sized Chips in Steel
  • Helix angles target material, minimize vibration, and optimize tool life
  • Chip deformers for near-perfect chip management and high surface quality
  • 3xD and 5xD with Plain and Weldon® shanks
  • Weldon® shank for pullout protection
Materials
  • Steel, Stainless Steel, Cast Iron, High-Temp Alloys, Hardened Materials
Technical Data
  • Grade: KC643M
  • Coating: AlTiN
  • Adapter Style: Weldon Shank
  • Number of Flutes: 5
  • Effective Cutting Diameter: 0.750"
  • Shank Diameter: 0.750"
  • Length of Cut: 2.250"
  • Overall Length: 5.000"
  • Corner Radius: 0.060"
  • Helix Angle: 40°

Country of Origin is subject to change.

Safety data sheets upon request.
