CV50 Steep Taper .750" Shell Mill Adapter (THROUGH COOLANT) 3640197

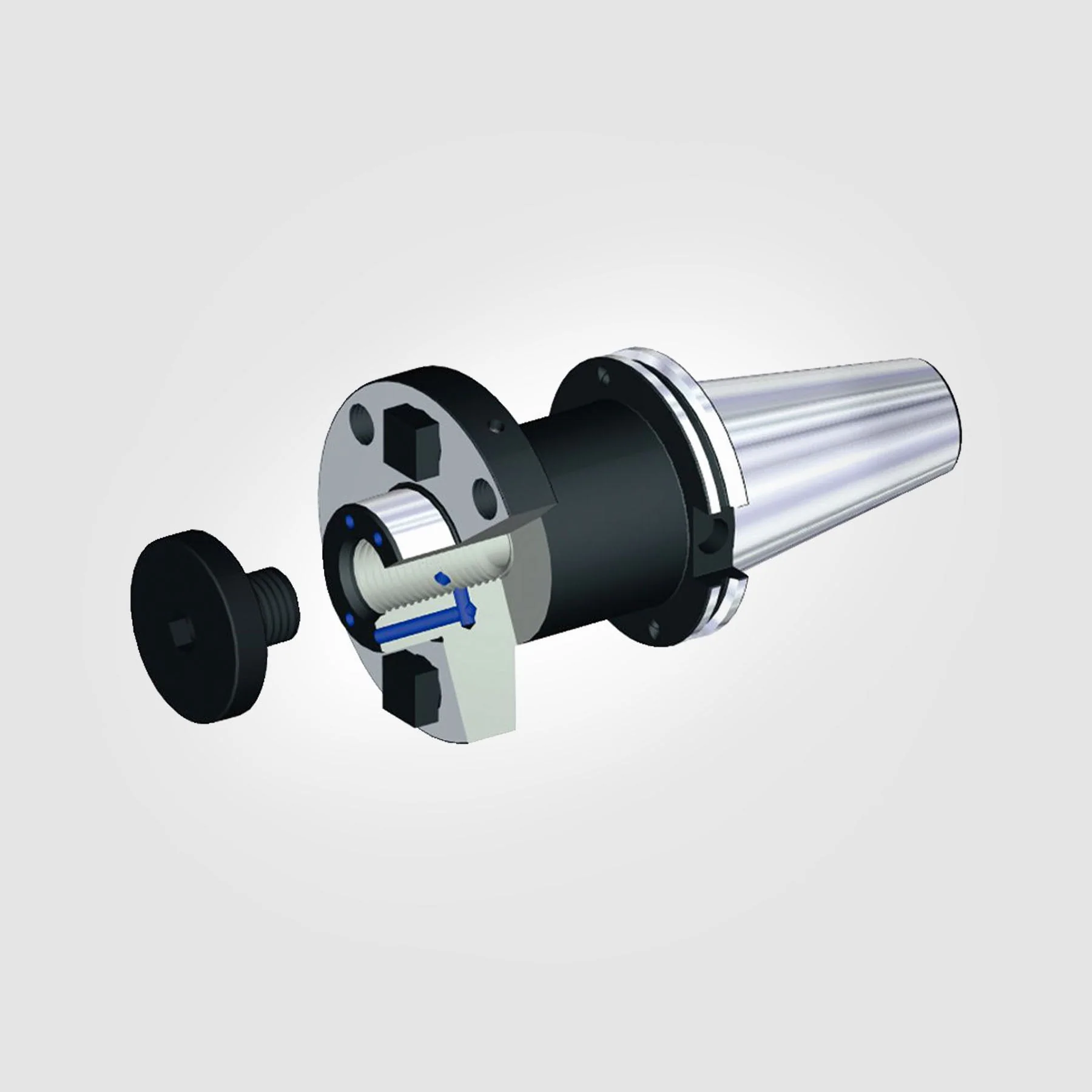

Product image 1
1 / 2

CV50 Steep Taper .750" Shell Mill Adapter (THROUGH COOLANT) 3640197

Machine Your Way to Success!
  • Improve your tool life and workpiece surface quality
  • Quicker and easier tool changes
  • High-performance holders, built to last
Technical Data
  • Adapter Type: Steep Taper
  • System Size: CV50

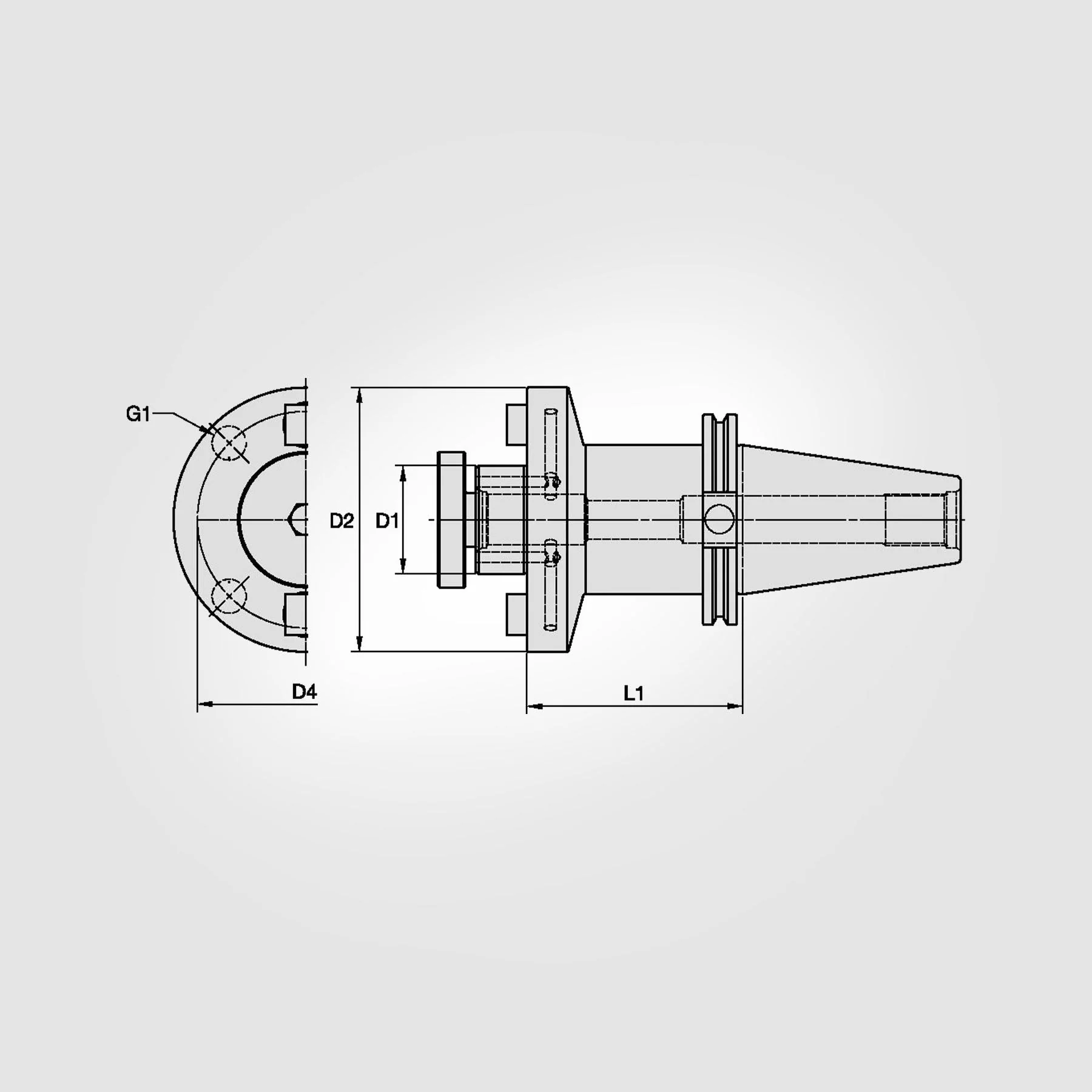

  • [D1] Adapter Diameter (Inch): 0.750"
  • [D1] Adapter Diameter (Metric): 19.050mm
  • [D2] Body Diameter (Inch): 1.752"
  • [D2] Body Diameter (Metric): 44.500mm
  • [L1] Gage Length (Inch): 3.500"
  • [L1] Gage Length (Metric): 88.900mm
  • [L] Overall Length (Inch): 8.188"
  • [L] Overall Length (Metric): 207.975mm
  • [L2] Usable Length (Inch): 2.750"
  • [L2] Usable Length (Metric): 69.850mm
  • Through Coolant: Yes
  • Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.

$258.53
CV50 Steep Taper .750" Shell Mill Adapter (THROUGH COOLANT) 3640197—
$258.53

Product Information

Shipping & Returns

Description

Machine Your Way to Success!
  • Improve your tool life and workpiece surface quality
  • Quicker and easier tool changes
  • High-performance holders, built to last
Technical Data
  • Adapter Type: Steep Taper
  • System Size: CV50
  • [D1] Adapter Diameter (Inch): 0.750"
  • [D1] Adapter Diameter (Metric): 19.050mm
  • [D2] Body Diameter (Inch): 1.752"
  • [D2] Body Diameter (Metric): 44.500mm
  • [L1] Gage Length (Inch): 3.500"
  • [L1] Gage Length (Metric): 88.900mm
  • [L] Overall Length (Inch): 8.188"
  • [L] Overall Length (Metric): 207.975mm
  • [L2] Usable Length (Inch): 2.750"
  • [L2] Usable Length (Metric): 69.850mm
  • Through Coolant: Yes
  • Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
