7792VXD-IC09 High-Feed Shell Mill 1.500" Max Cut Dia with 5-Flutes 5658170

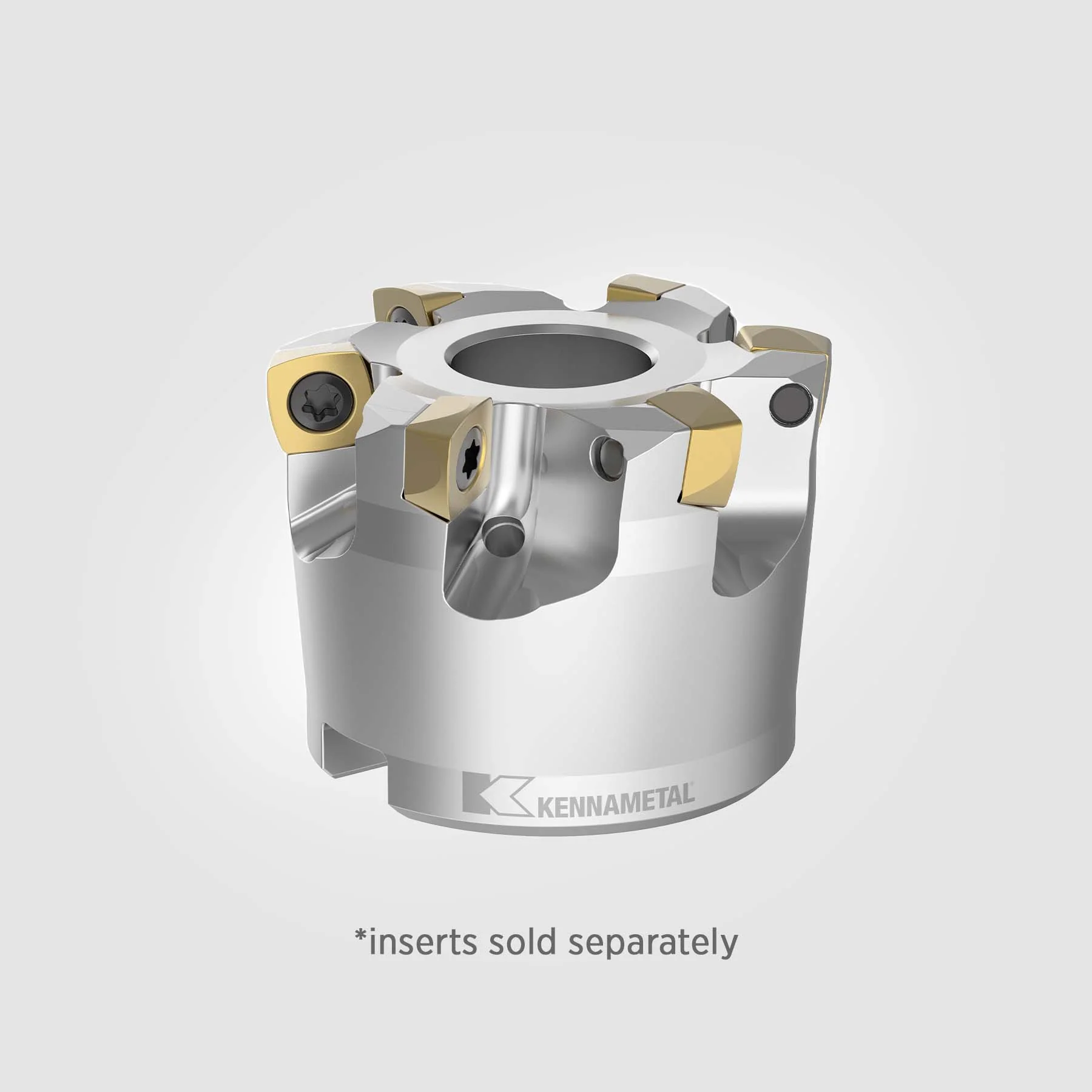

Product image 1
1 / 2

7792VXD-IC09 High-Feed Shell Mill 1.500" Max Cut Dia with 5-Flutes 5658170

High-Feed Milling Cutters
  • Ultra-fine pitch cutters increase material removal rates, especially on high-temp alloys
  • Positive design to support lower cutting forces and long overhang usage
  • Ramping and plunge milling capabilities
  • No through coolant for cutters where D1MAX = 160mm

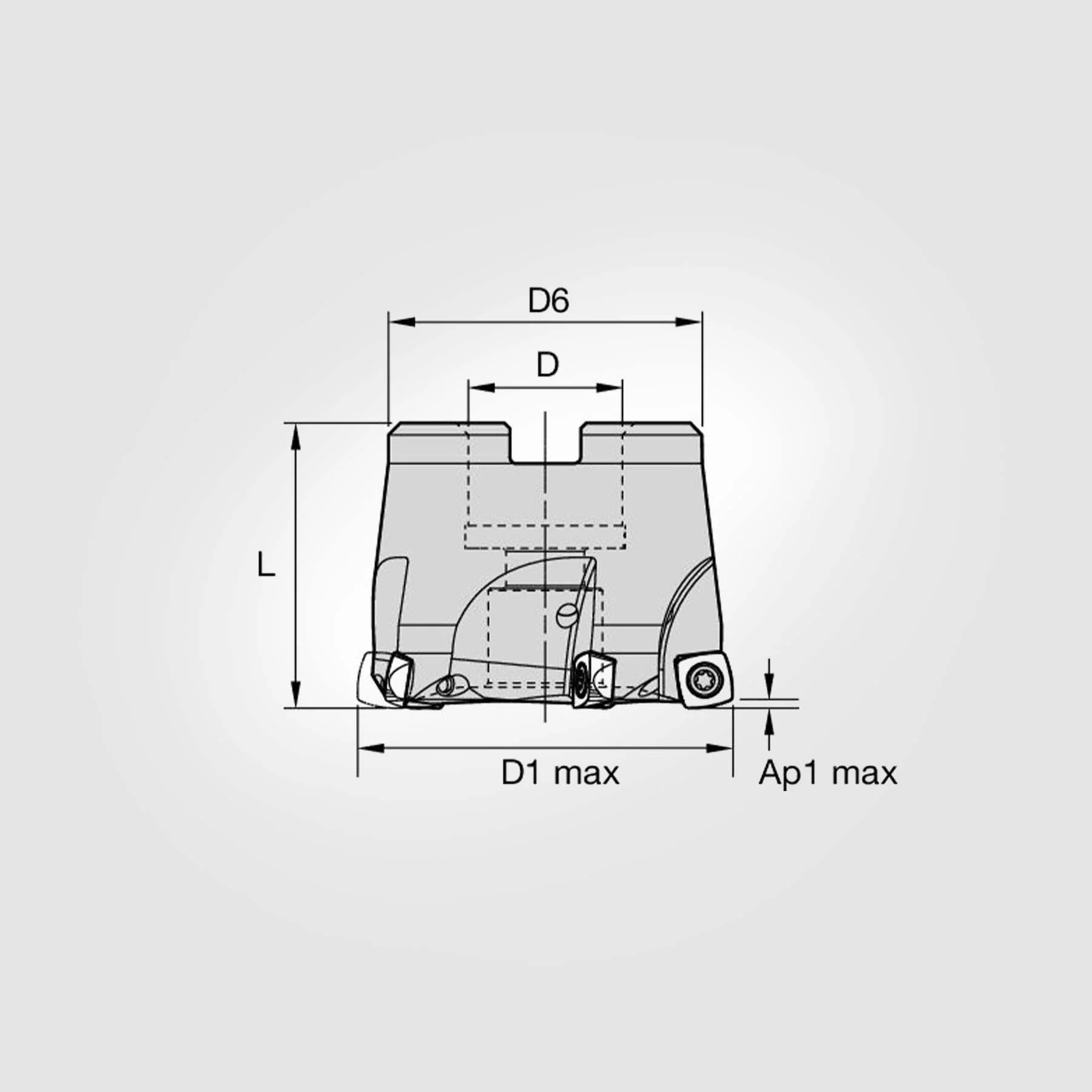

Technical Data
  • Series: 7792VXD
  • Adapter Type: A-Socket Head Cap Screw
  • Number of Flutes: 5
  • [D] Adapter Diameter (Inch): 0.500"
  • [D] Adapter Diameter (Metric): 12.700mm
  • [D1] Effective Cutting Diameter (Inch): 0.980"
  • [D1] Effective Cutting Diameter (Metric): 24.892mm
  • [D1MAX] Maximum Cutting Diameter (Inch): 1.500"
  • [D1MAX] Maximum Cutting Diameter (Metric): 38.100mm
  • [D6] Hub Diameter (Inch): 1.339"
  • [D6] Hub Diameter (Metric): 34.000mm
  • [AP1MAX] Maximum Cut Depth (Inch): 0.059"
  • [AP1MAX] Maximum Cut Depth (Metric): 1.500mm
  • [L] Overall Length (Inch): 1.260"
  • [L] Overall Length (Metric): 32.000mm
  • [L1] Gage Length (Inch): 1.260"
  • [L1] Gage Length (Metric): 32.000mm
  • Maximum RPM: 36,000

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.

$690.02
7792VXD-IC09 High-Feed Shell Mill 1.500" Max Cut Dia with 5-Flutes 5658170—
$690.02

Product Information

Shipping & Returns

Description

High-Feed Milling Cutters
  • Ultra-fine pitch cutters increase material removal rates, especially on high-temp alloys
  • Positive design to support lower cutting forces and long overhang usage
  • Ramping and plunge milling capabilities
  • No through coolant for cutters where D1MAX = 160mm
Technical Data
  • Series: 7792VXD
  • Adapter Type: A-Socket Head Cap Screw
  • Number of Flutes: 5
  • [D] Adapter Diameter (Inch): 0.500"
  • [D] Adapter Diameter (Metric): 12.700mm
  • [D1] Effective Cutting Diameter (Inch): 0.980"
  • [D1] Effective Cutting Diameter (Metric): 24.892mm
  • [D1MAX] Maximum Cutting Diameter (Inch): 1.500"
  • [D1MAX] Maximum Cutting Diameter (Metric): 38.100mm
  • [D6] Hub Diameter (Inch): 1.339"
  • [D6] Hub Diameter (Metric): 34.000mm
  • [AP1MAX] Maximum Cut Depth (Inch): 0.059"
  • [AP1MAX] Maximum Cut Depth (Metric): 1.500mm
  • [L] Overall Length (Inch): 1.260"
  • [L] Overall Length (Metric): 32.000mm
  • [L1] Gage Length (Inch): 1.260"
  • [L1] Gage Length (Metric): 32.000mm
  • Maximum RPM: 36,000

INSERTS SOLD SEPARATELY

Country of Origin is subject to change.

Safety data sheets upon request.
