VERO-S WDM-5X-SM Clamping System

Product image 1
1 / 6

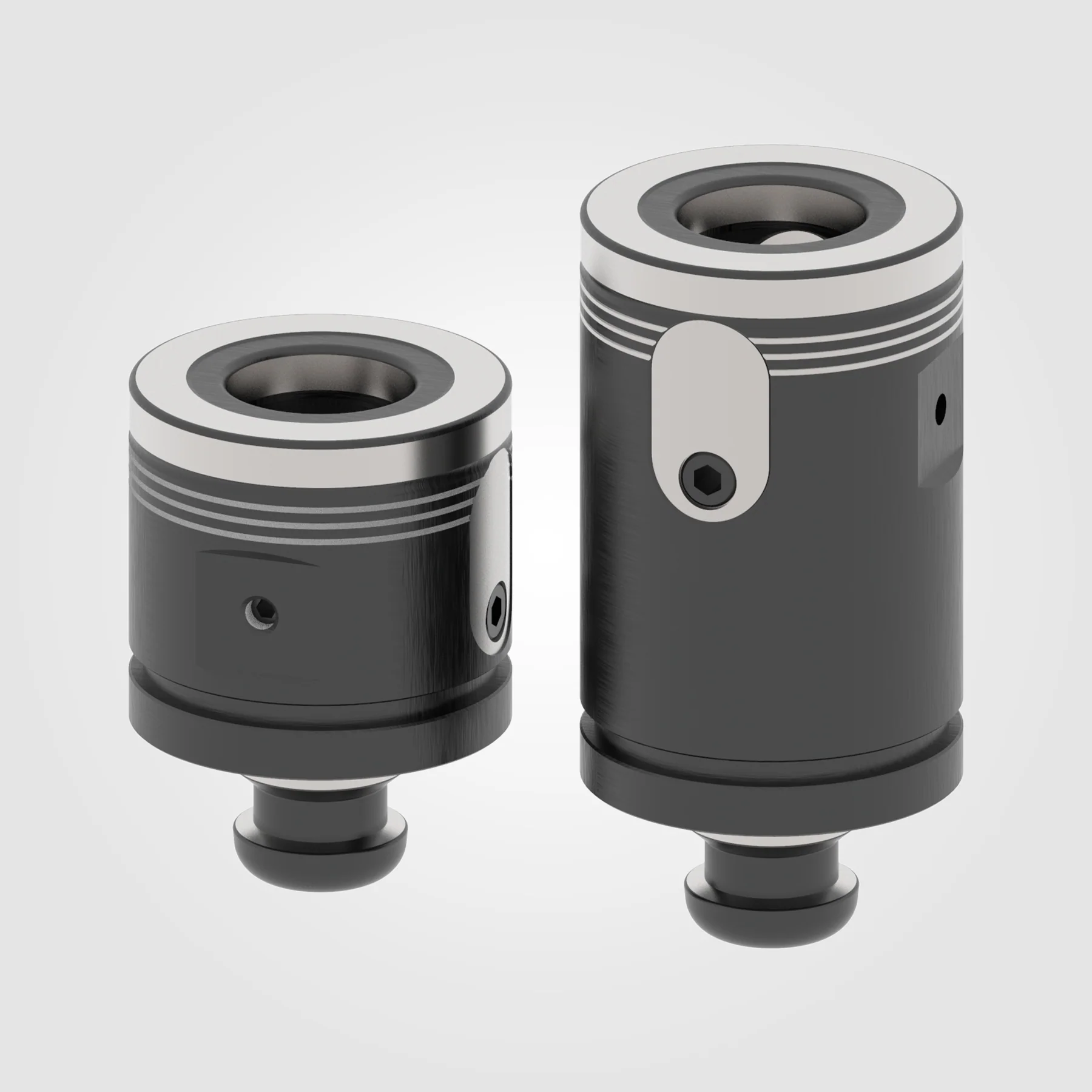

VERO-S WDM-5X-SM Clamping System

#All
Product Details
  • Workpiece direct clamping system
  • Highly flexible
  • Stacking module
  • Ideally suited for 5-sided machining
#80125
Technical Data
  • Dimensions: Ø80 x 125 mm
  • Pull-down force: 25 kN
  • Actuation torque: 15 Nm
  • Repeat accuracy: < 0.005 mm
  • Weight: 4.7 kg
#80100
Technical Data
  • Dimensions: Ø80 x 100 mm
  • Pull-down force: 25 kN
  • Actuation torque: 15 Nm
  • Repeat accuracy: < 0.005 mm
  • Weight: 3.65 kg
#8075
Technical Data
  • Dimensions: Ø80 x 75 mm
  • Pull-down force: 25 kN
  • Actuation torque: 15 Nm
  • Repeat accuracy: < 0.005 mm
  • Weight: 2.85 kg
Select Size
From $281.74

Original: $939.14

-70%
VERO-S WDM-5X-SM Clamping System—

$939.14

$281.74

Product Information

Shipping & Returns

Description

#All
Product Details
  • Workpiece direct clamping system
  • Highly flexible
  • Stacking module
  • Ideally suited for 5-sided machining
#80125
Technical Data
  • Dimensions: Ø80 x 125 mm
  • Pull-down force: 25 kN
  • Actuation torque: 15 Nm
  • Repeat accuracy: < 0.005 mm
  • Weight: 4.7 kg

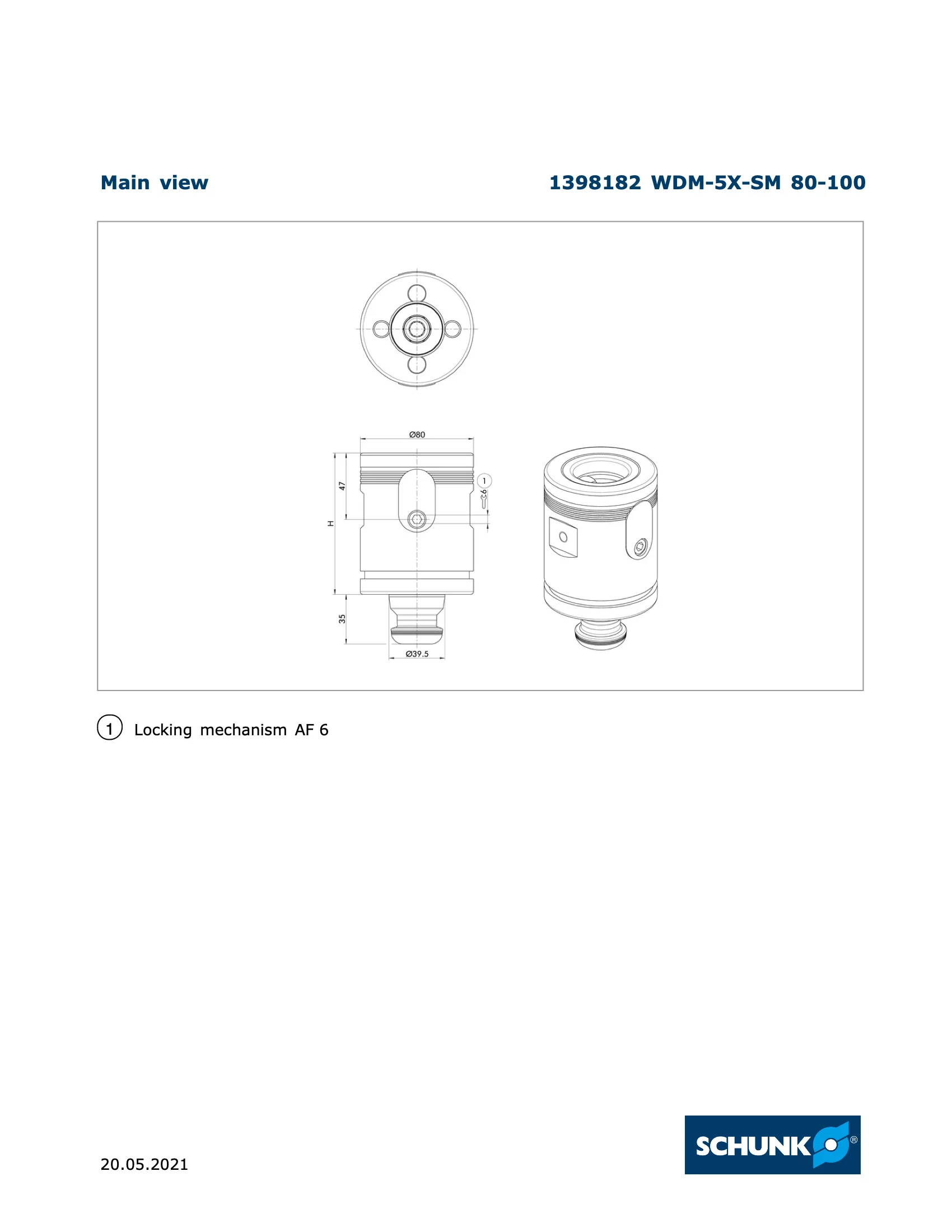

#80100
Technical Data
  • Dimensions: Ø80 x 100 mm
  • Pull-down force: 25 kN
  • Actuation torque: 15 Nm
  • Repeat accuracy: < 0.005 mm
  • Weight: 3.65 kg

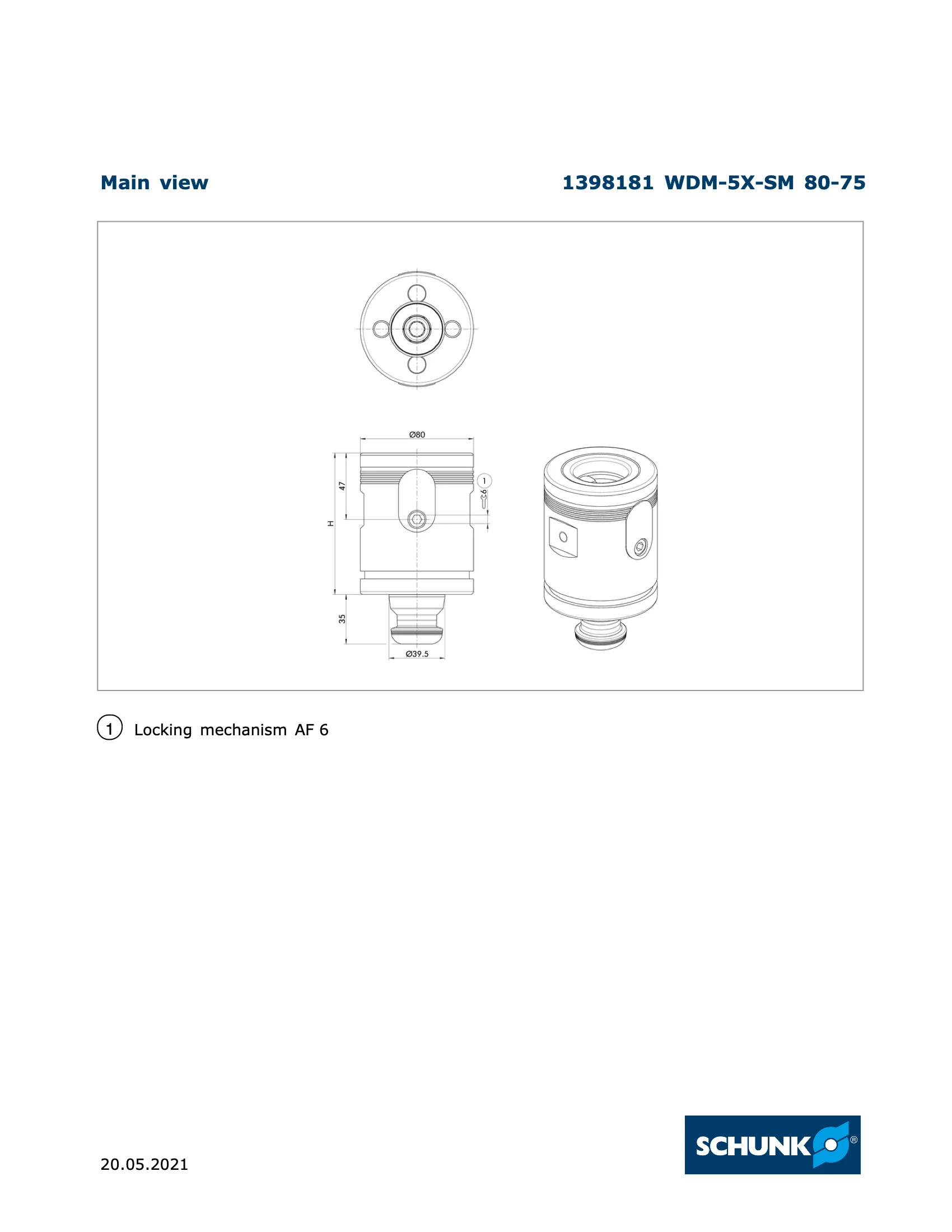

#8075
Technical Data
  • Dimensions: Ø80 x 75 mm
  • Pull-down force: 25 kN
  • Actuation torque: 15 Nm
  • Repeat accuracy: < 0.005 mm
  • Weight: 2.85 kg
